• Dimensions suit shed / factory use
• Single phase 240v motor as standard
• Perfect for long term car storage
• Will lift most vehicles with ease

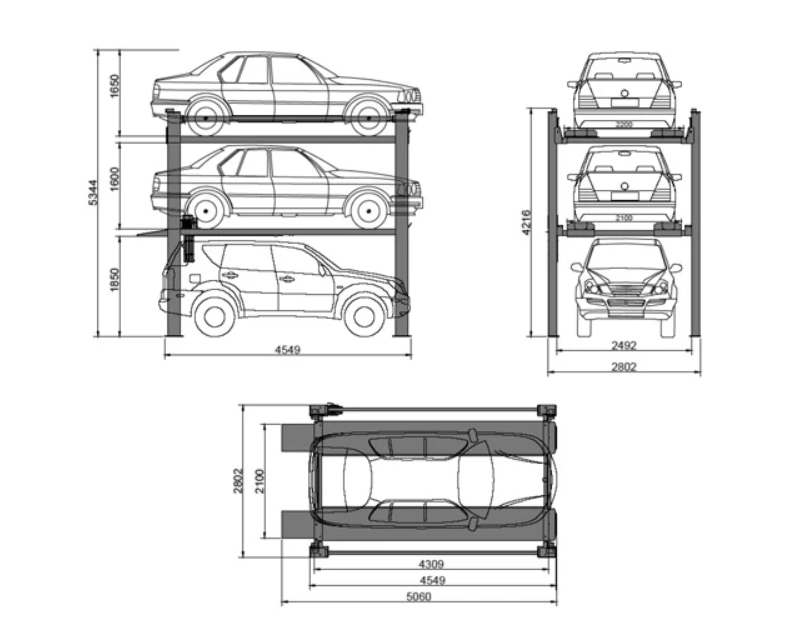

• Minimum 5.4 metre ceiling height required

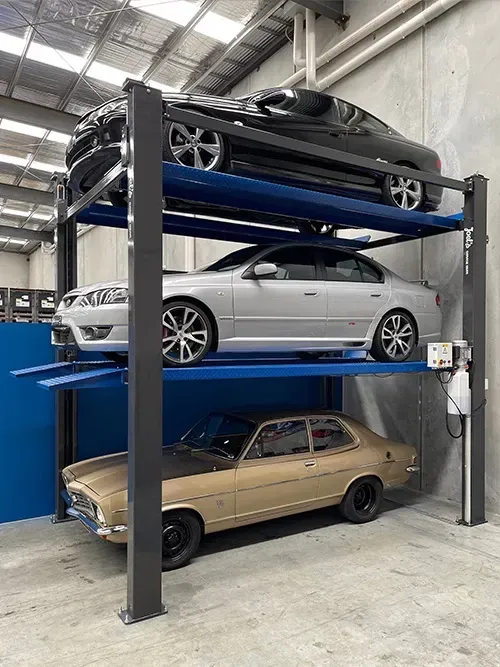

This three tier Car Parking Hoist is perfect for storing multiple vehicles within a smaller footprint, in order to increase the overall car parking capacity of your shed space.

Safety Features

• Emergency stop
• Self-restore key switch
• Full size dynamic anti-fall lock
• Safety brake
• 24v electronic control system
• Power overload protection
• Limit switch
• 10mm steel wire rope lifting cables
• Anti-surge valve in the hydraulic power unit

What’s Included?

• Car parking hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts
• Detailed installation instructions

What’s Not Included?

• Hydraulic oil
• Setup of power units electrical connection

Shed Requirements

• 200mm deep concrete at 32mpa with 500 x 500mm x 300mm deep footings under each column
• Minimum ceiling height of 5.4m

Warranty & Certifications

• 3 year Australian warranty* includes structure, hydraulics & electrics
• Independent Australian Standards certified
• CE certification
