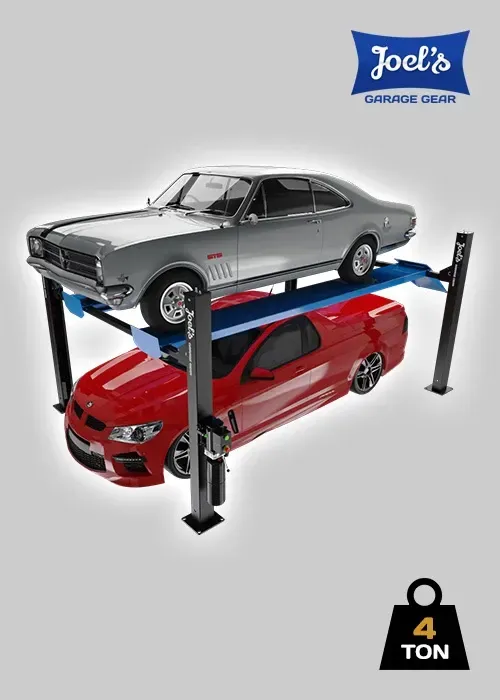

Australia’s best selling 4 Post Hoist. Useful for working on cars and increasing storage space in your

shed — It’s the perfect choice for commercial workshops and car enthusiasts alike.

Safety Features

• 4 point pneumatic safety lock releases
• Additional secondary safety lock when weight comes off the cables
• Runways must first be raised a fraction before the safety locks will operate to allow the car
• hoist to be lowered
• Heavy duty 6mm thick cross beams and 5mm thick runways
• 10mm steel wire rope equalising cables
• Anti-surge valve in the hydraulic power unit

What’s Included?

• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts
• Detailed installation instructions

What’s Not Included?

• Hydraulic oil
• Setup of power units electrical connection
• Compressed air supply

Optional Accessories

• A rolling Secondary Lift is the easiest way to jack up cars on the hoist
• An Optional Jacking Plate can be used as an extra support point under the vehicle
• Caster Wheels allow you to move the 4 Post Hoist around your workshop with ease
• Need to do wheel alignments? We offer a Wheel Alignment Kit as an add-on
• Storing cars above and below? Be sure to use our Oil Drip Trays to keep them safe

Shed Requirements

• 150mm deep concrete at 32mpa
• Minimum ceiling height of 3.5m

Warranty & Certifications

• 3 year Australian warranty* includes structure, hydraulics & electrics
• Australian WorkSafe registered design
• CE certification
