BendPak HDS014P

Open-Front Capability in a Powerful Four-Post HoistThe HDSO14P is an open-front four-post hoist that features clear entry upfront, providing easy vehicle access. A generous 6,350-kg. hoisting capacity and extended runways allow you to service a wide variety of vehicles, ranging from

small cars to full-size trucks.


Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.


Features



  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Heavy-duty 1/2” aircraft cable and 1.75” roller axles
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Oversized self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Customizable power unit location

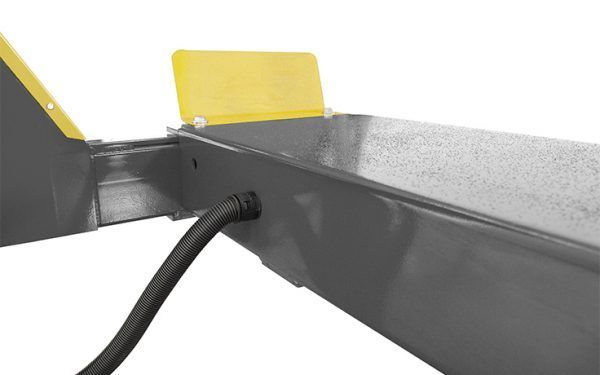

  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature a durable matte finish
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 7,000-lb. capacity rolling jacks available
  • ETL approved

HDS-14 Four-Post Car Lift: No Such Thing as Overboard

Our competitors might say we overdo it, but we don’t include components for the sake of frills and flash. We designed this four-post lift with the attributes we feel should be considered standard, not add-ons or extras. You can always count on BendPak lifts for increased durability, safety and productivity. Spend less time worrying about what you’re working under and more time doing what you love. Our commercial-grade car lifts are second to none.


Extended runways

14,000-lb. vehicles have wheelbases that need specialized equipment to keep them safe and supported. Our extended runways prevent wear and tear on your vehicle; driving onto a car lift runway should not feel like your truck is climbing Mt. Everest

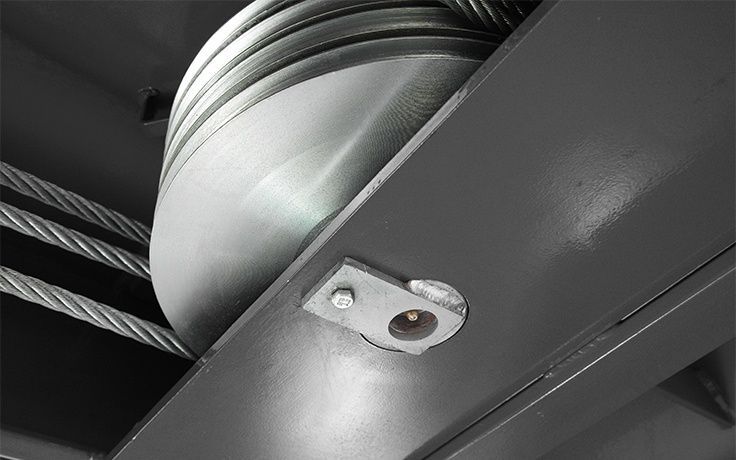

Dual-hub cable sheaves

Dual-hub cable sheaves reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. This dramatically improves cable wear and critical component lifespan, which means less service-related expenses down the road.


Heavy-duty aircraft cable

This car lift features four, 1/2” diameter, 6 x 25 stainless-steel lifting cables that have a breaking strength of over 14,000 lbs. each. This aircraft-quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue.


Built-in lubrication

Grease fittings are located on every sheave and sheave axle to help keep these critical parts welllubricated and simplify periodic maintenance.


Large base plates

10” x 12” base plates provide a solid foundation for every 14K capacity four-post car lift.


Spring-loaded safety locks

Safety locks automatically engage continuously during rise, and adjustable safety ladders allow for precise runway leveling, even when installed on sloped floors.
