Maximum 8000kg capacity per column.
Set up multiple combinations (2, 4, 6 or 8 columns and up to 16 columns set) .

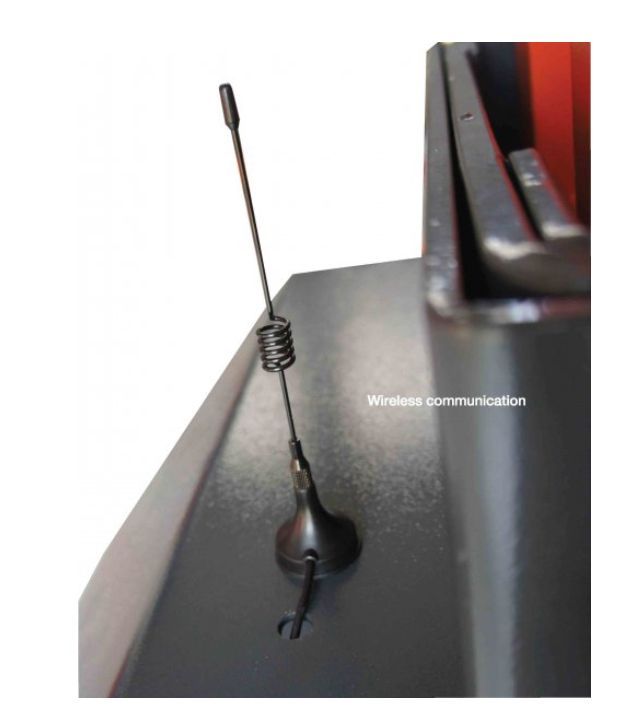

Communicate wirelessly by WLAN, no cables to maintain.
Double safety guaranteed by mechanical and hydraulic locking systems.
Synchronization is automatically achieved by using microchip technology in the control system.
Touch screen control, Real−time lifting height.
Latching emergency switch on every column.

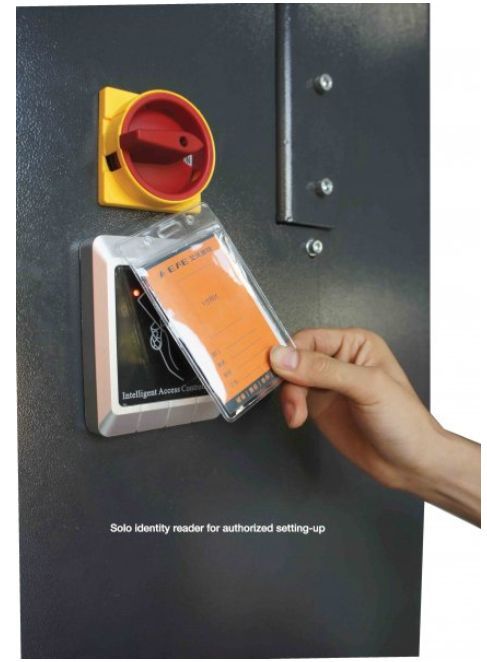

ID−Key to prevent unauthorized operation.
Safety buzz sound 20 cm from ground when lowering.
2 batteries in each column with 110V−220V charging system.
24V safe control system.

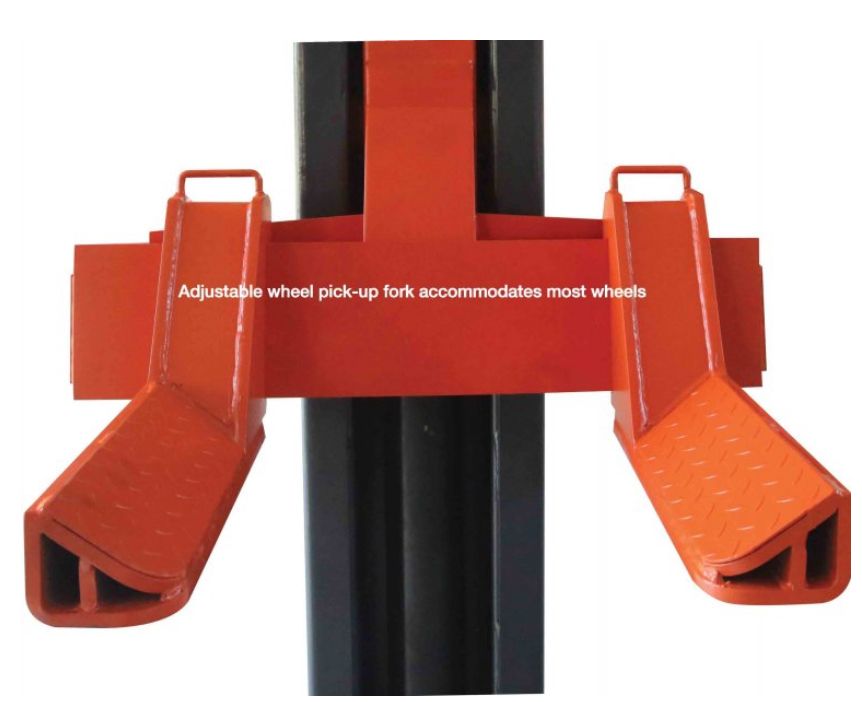

Adjustable wheel pick−up fork accommodates most of wheels.

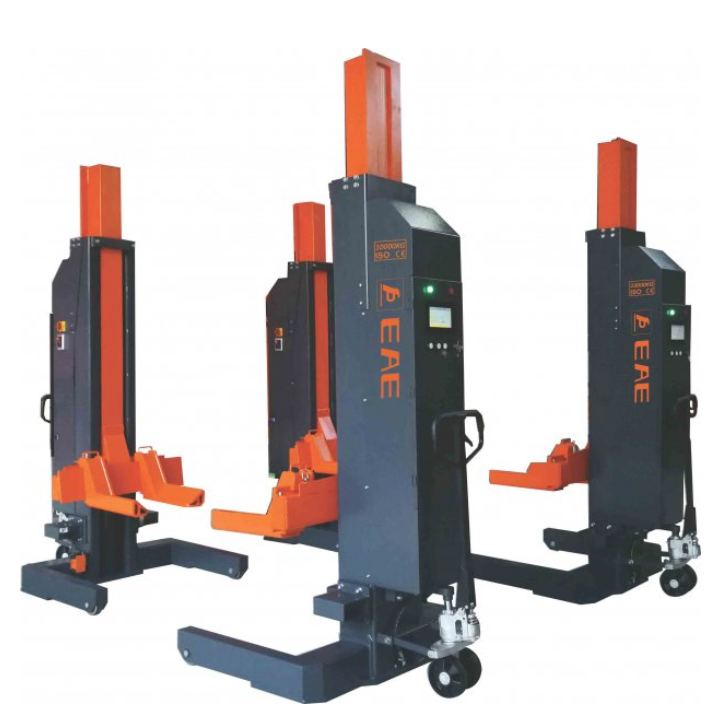

Movable columns help you work efficiently and comfortably.
Specification
Capacity: 8T (per column)
Locking Release: Electric
Max Lifting Height : 1800 mm
Min. Height: 159 mm
Full-Rise Time Under Rated Load: 100s
Rated Oil Pressure: 15MPa
Oil Reservoir: 18Lx4
Voltage Control: DC24V
Motor Running Voltage: DC12Vx4
Motor Power: 2.2kWx4
Approx. Tyre Size: 500-1200 mm
Includes
Safety
- Emergency lowering valve system to protect against loss of power
- Mechanical and hydraulic safety locking systems
- Latching emergency switch on every column
- ID key to prevent unauthorised operation
- Safety buzz 20cm from the ground when lowering
- 24V Safe control system
- Anti-surge valve
- Cable slack locks
Options
Warranty
- 5 years (structure) + 2 years (electrical and hydraulics)
Certification
